BULLET 500
- Over View

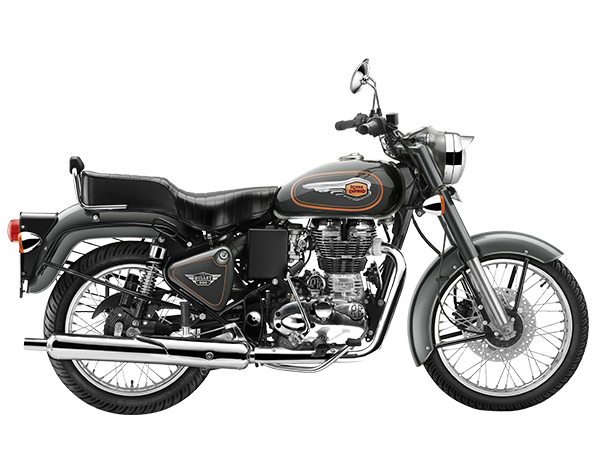

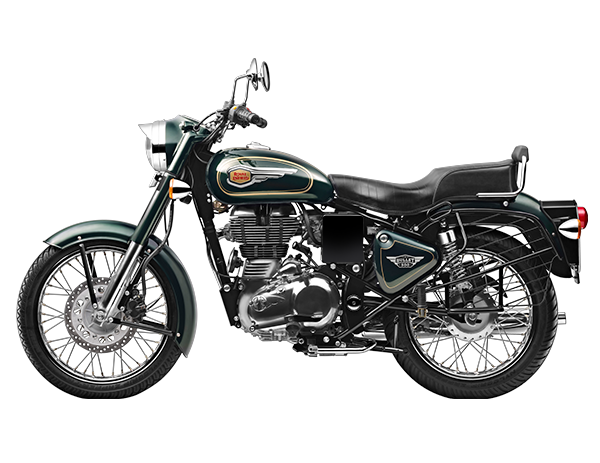

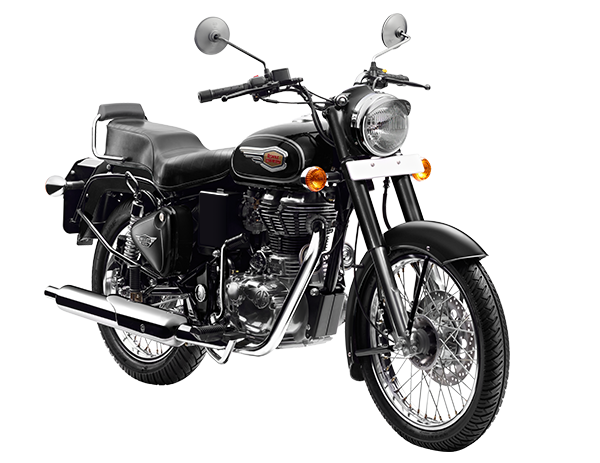

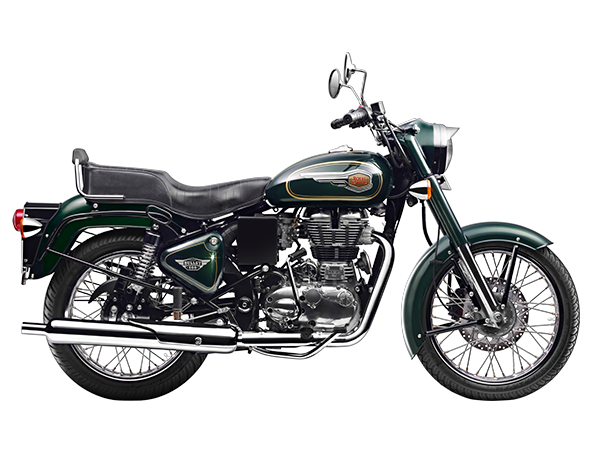

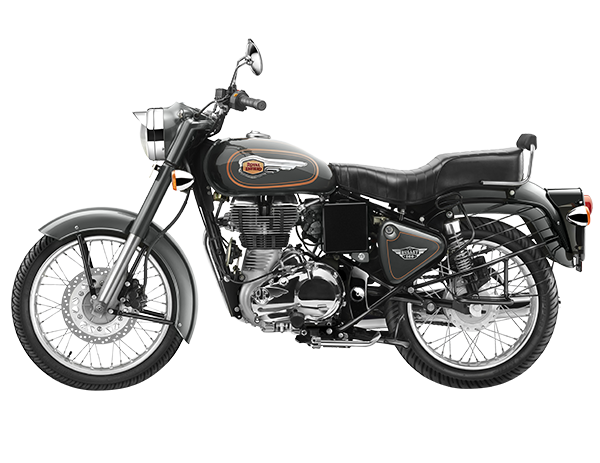

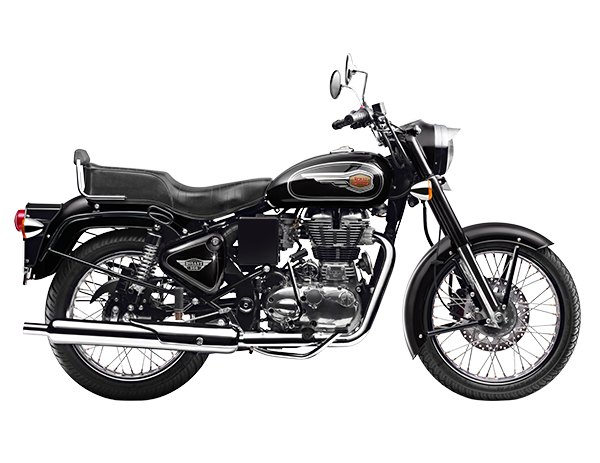

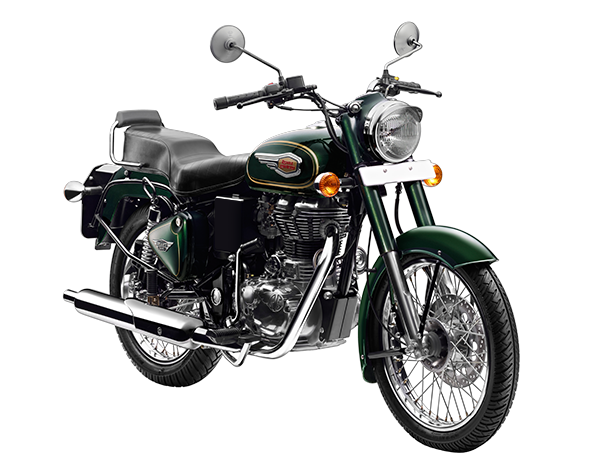

The new Bullet 500 is essentially the motorcycle with the timeless iconic handcrafted design of the legendary Bullet now powered with a solid 500 cc Unit Construction Engine with Twinspark ignition for better combustion, superior power delivery and improved fuel economy. Now technologically equipped with modern advances in engineering this motorcycle still maintains its impeccable lineage it has withheld for decades altogether. The iconic Bullet is now available in an all new shade of Forest Green with the same aristocratic livery pinstriping now in a silver finish symbolic of automotive royalty
- Displacement
499 CC
- Gearbox
5 Speed
- Fuel Capacity
13.5 Ltr
- TECHNICAL SPECIFICATIONS
| ENGINE | |
|---|---|
| Type: | Single Cylinder, 4 stroke,Twinspark, Aircooled |
| Displacement: | 499cc |
| Bore x stroke : | 84mm x 90mm |
| Compression Ratio: | 8.5:1 |
| Maximum Power: | 26.1 bhp @ 5100 rpm |
| Maximum Torque: | 40.9 Nm @ 3800 rpm |
| Ignition System: | TCI Unit, Multi curve |
| Clutch: | Wet, multi-plate |
| Gearbox: | 5 Speed Constant Mesh |
| Lubrication: | Wet sump |
| Engine Oil: | Oil 15 W 50 API, SL Grade JASO MA |
| Fuel Supply: | Carburettor with throttle position sensor |
| Air Cleaner: | Corrugated Paper Element |
| Engine Start: | Electric & Kick |
| CHASSIS & SUSPENSION: | |
| Type: | Single downtube, using engine as stressed member |
| Front suspension: | Telescopic, 130mm travel |
| Rear suspension: | Twin gas charged shock absorbers, 80mm travel |
| DIMENSIONS: | |
| Wheelbase: | 1370 mm |
| Ground Clearance: | 135mm |
| Length: | 2140mm |
| Width: | 810 mm (Without Mirror) |
| Height: | 1110 mm (Without Mirror) |
| Kerb Weight: | 193 Kg (with 90% Fuel & Oil) |
| Fuel Capacity: | 13.5 Ltr (3.2Gallon) |
| BRAKES & TYRES: | |
| Tyres Fr.: | 90/90 - 19 |
| Tyres Rr.: | 120/80 - 18 |
| Brakes Front : | 280mm Disc, 2-Piston caliper |
| Brakes Rear: | 153mm Drum, Single Lead Internal Expanding |
| ELECTRICALS: | |
| Electrical System: | 12 volt - DC |
| Battery : | 12 volt, 14 Ah |
| Head Lamp: | 60 W / 55 W, HALOGEN |
| Tail Lamp: | 21 W / 5 W |
| Turn Signal Lamp: | - |
