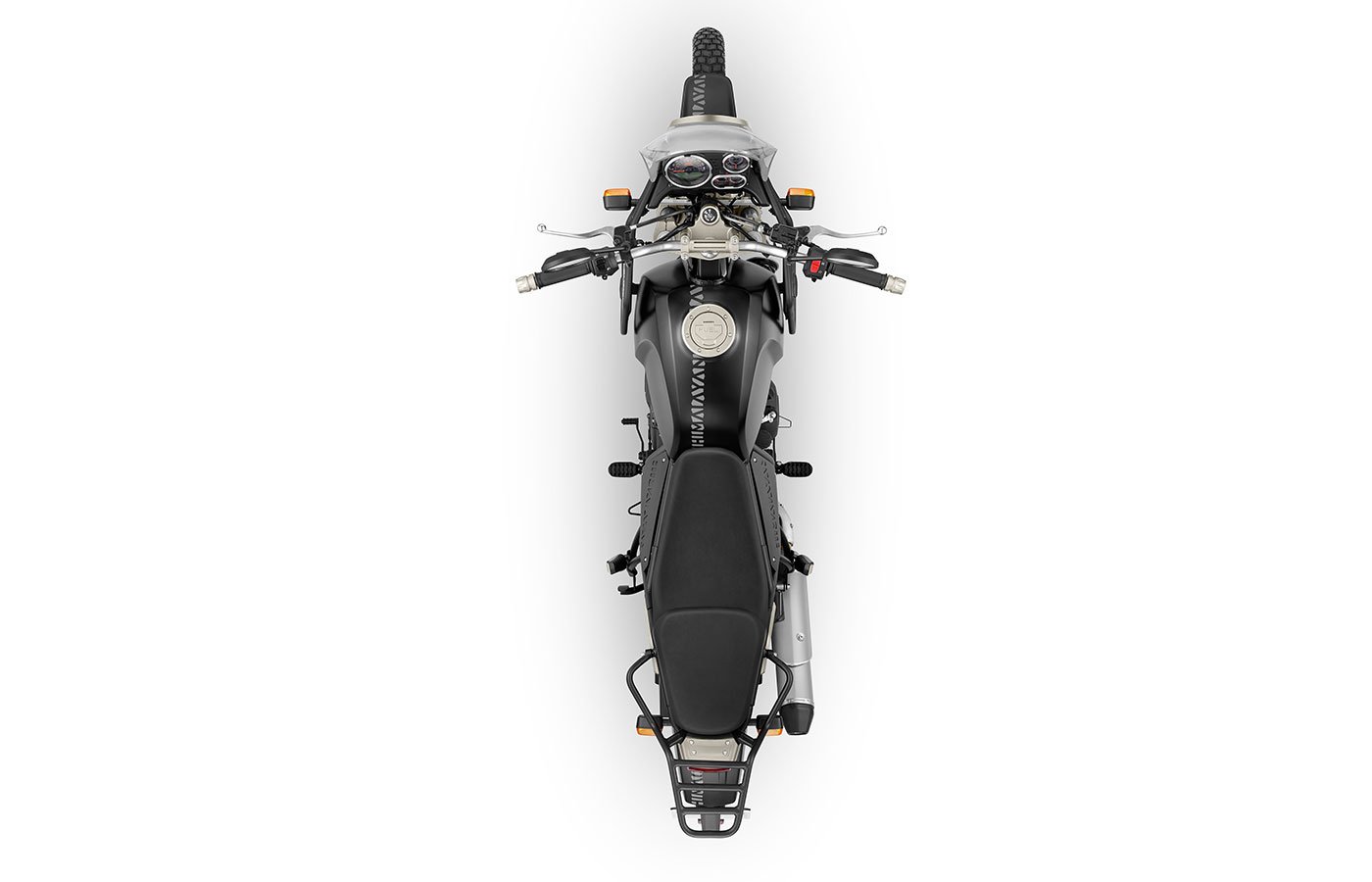

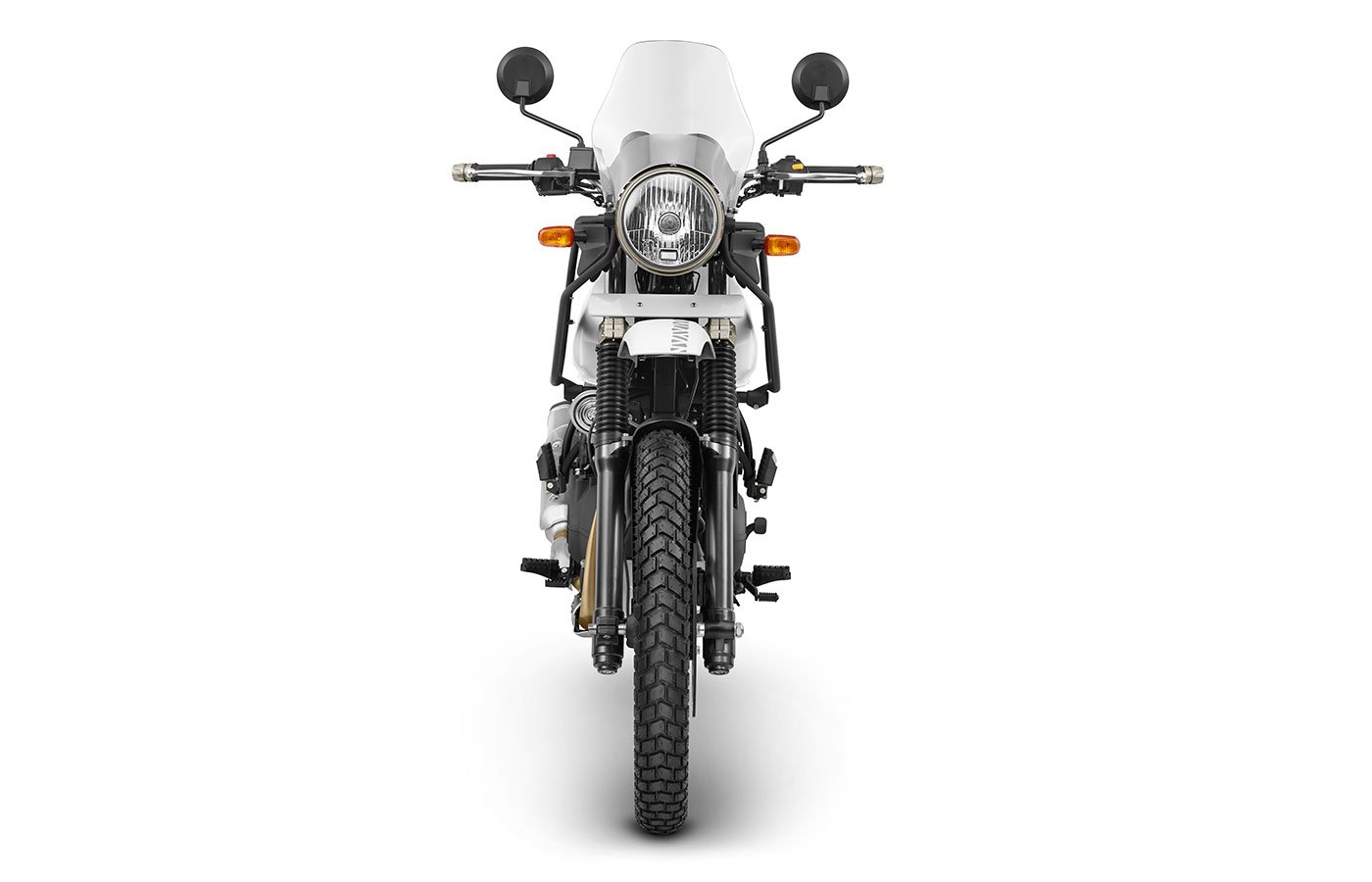

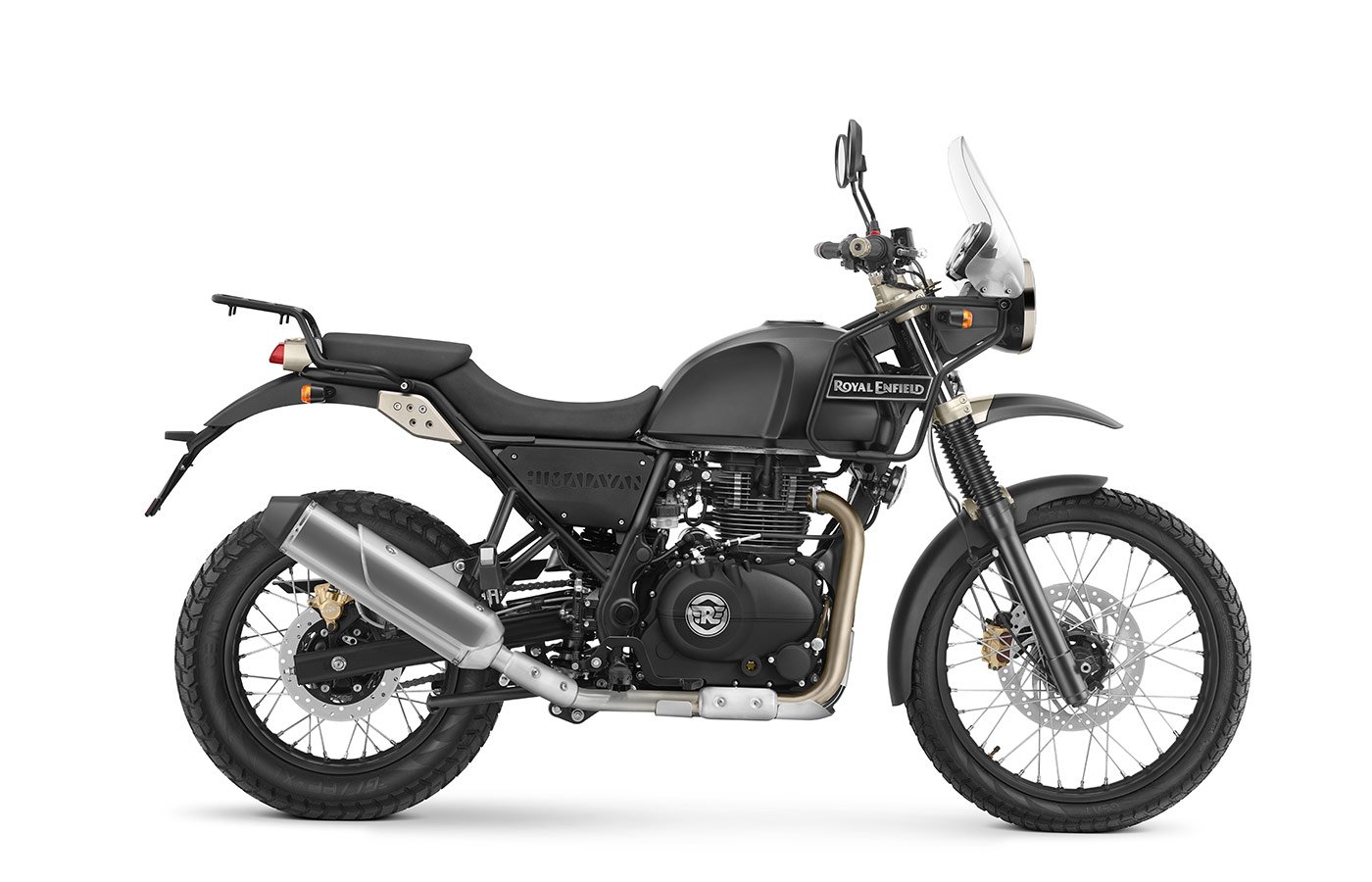

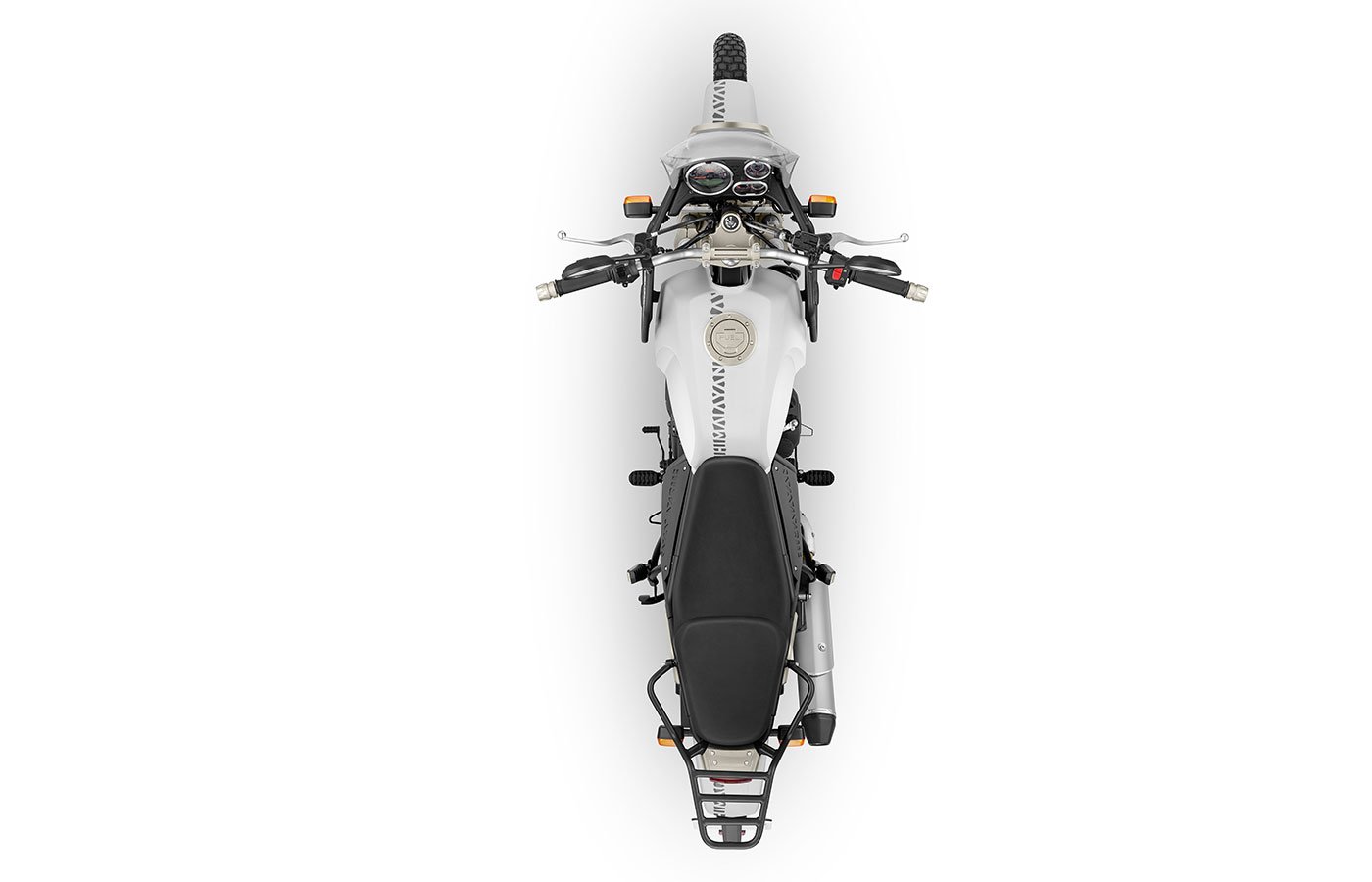

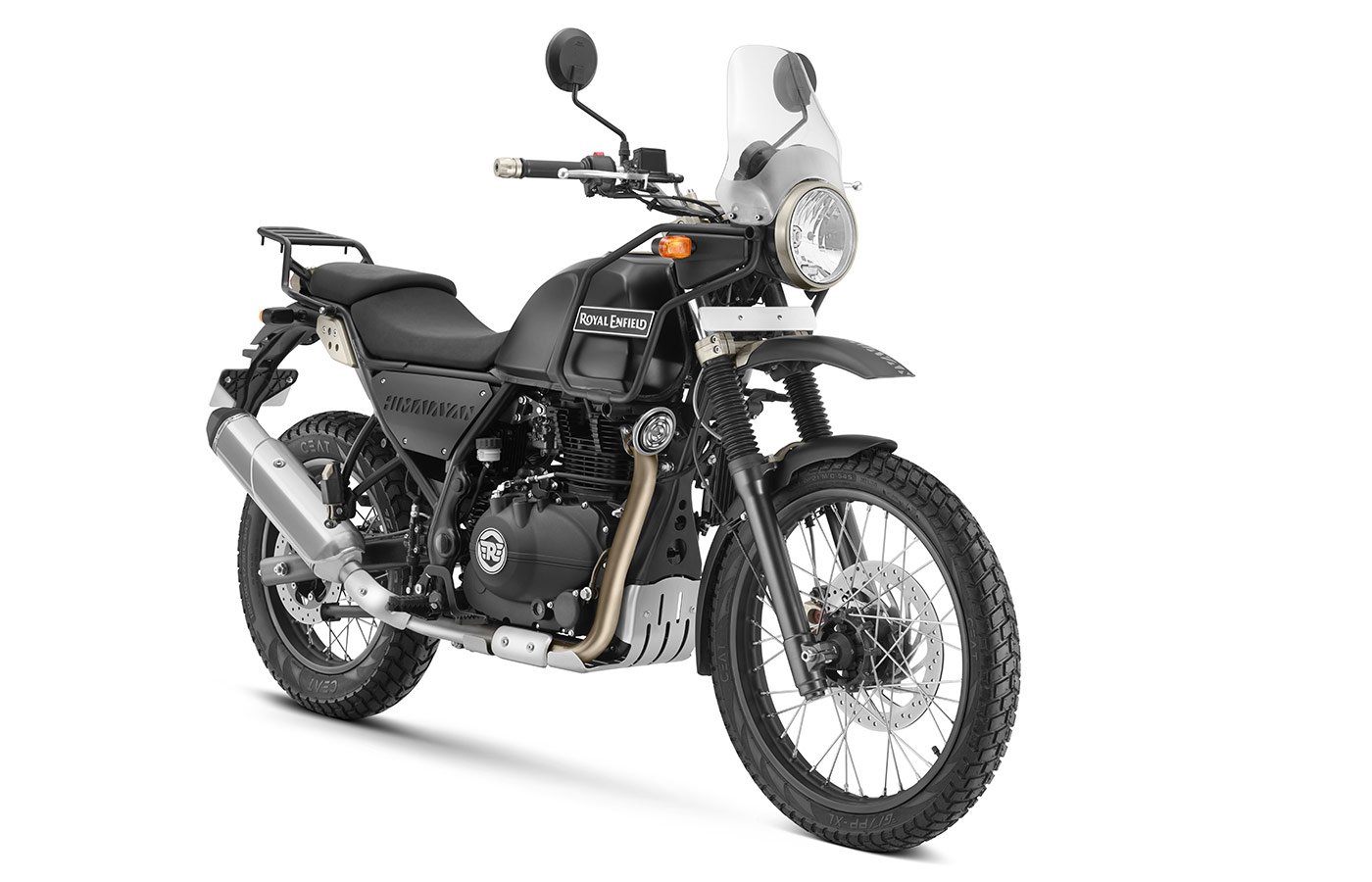

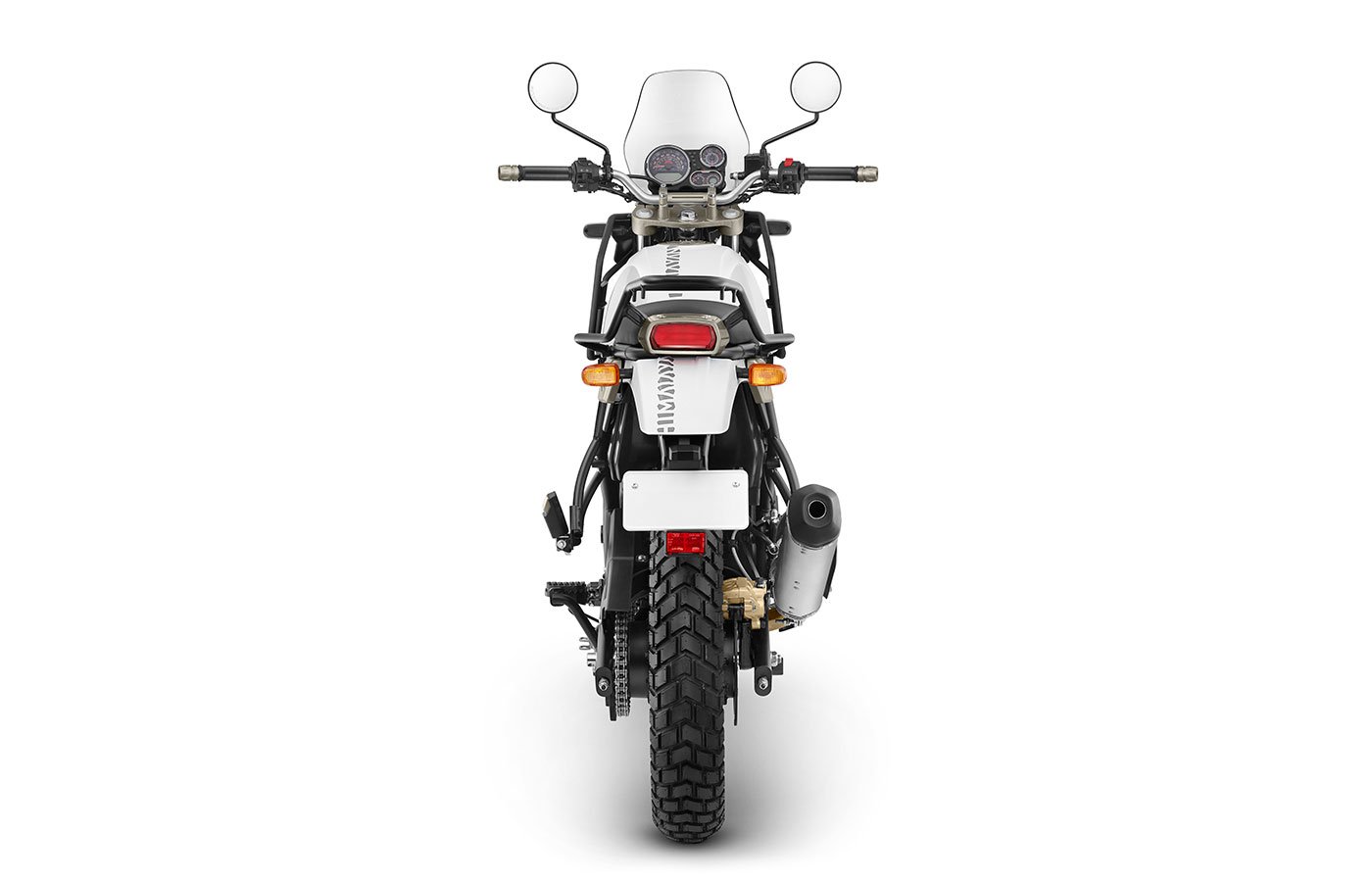

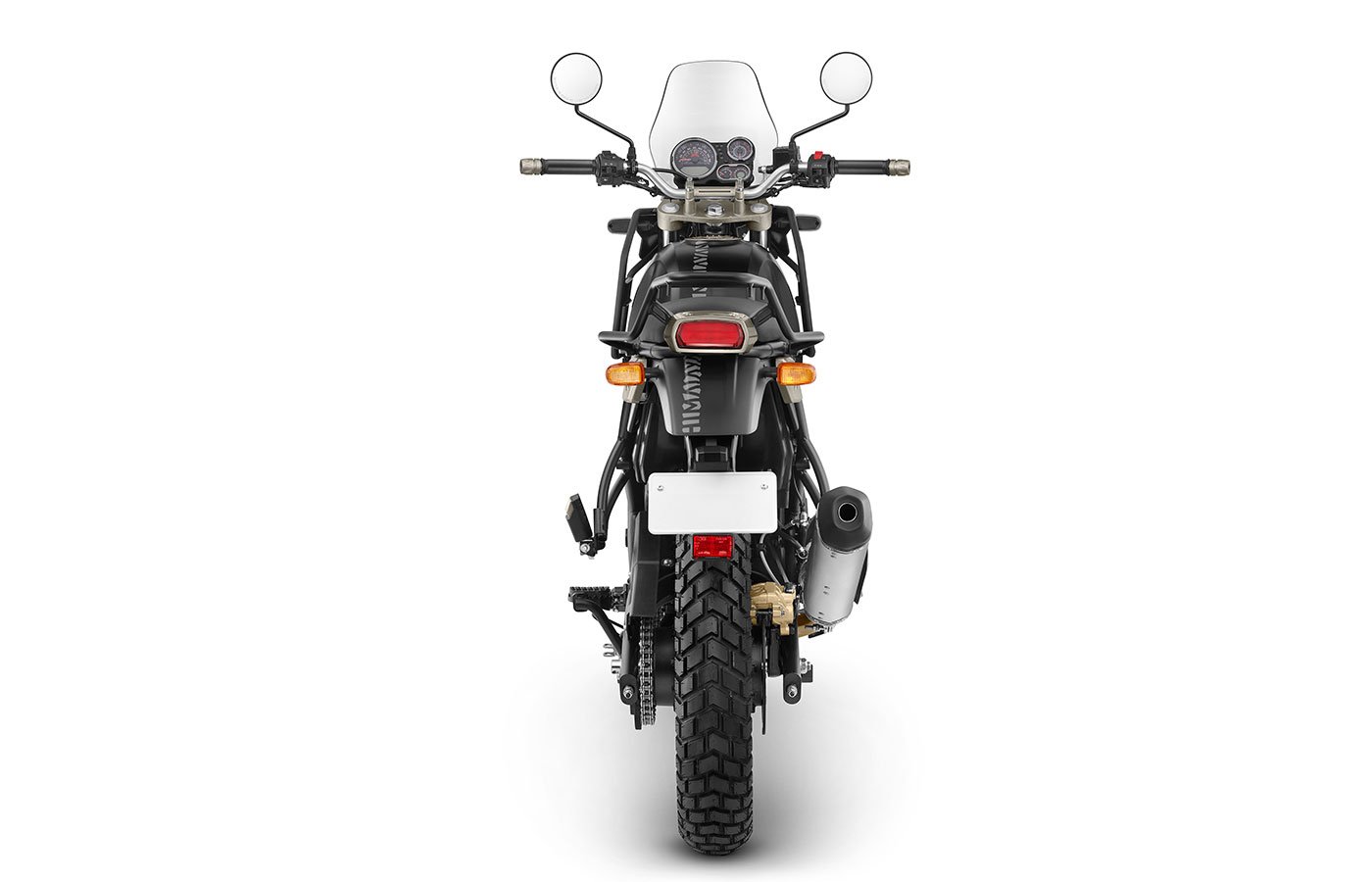

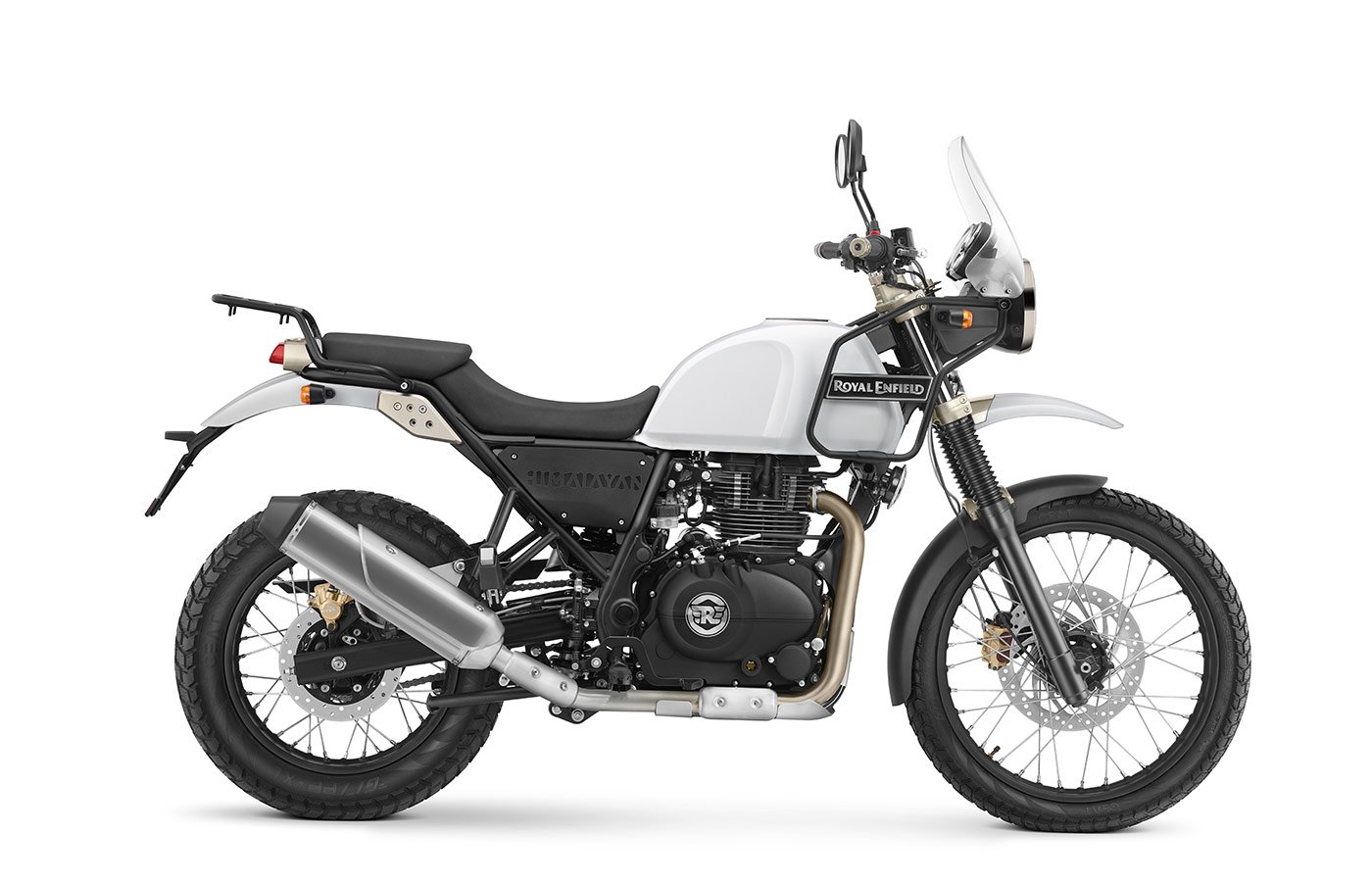

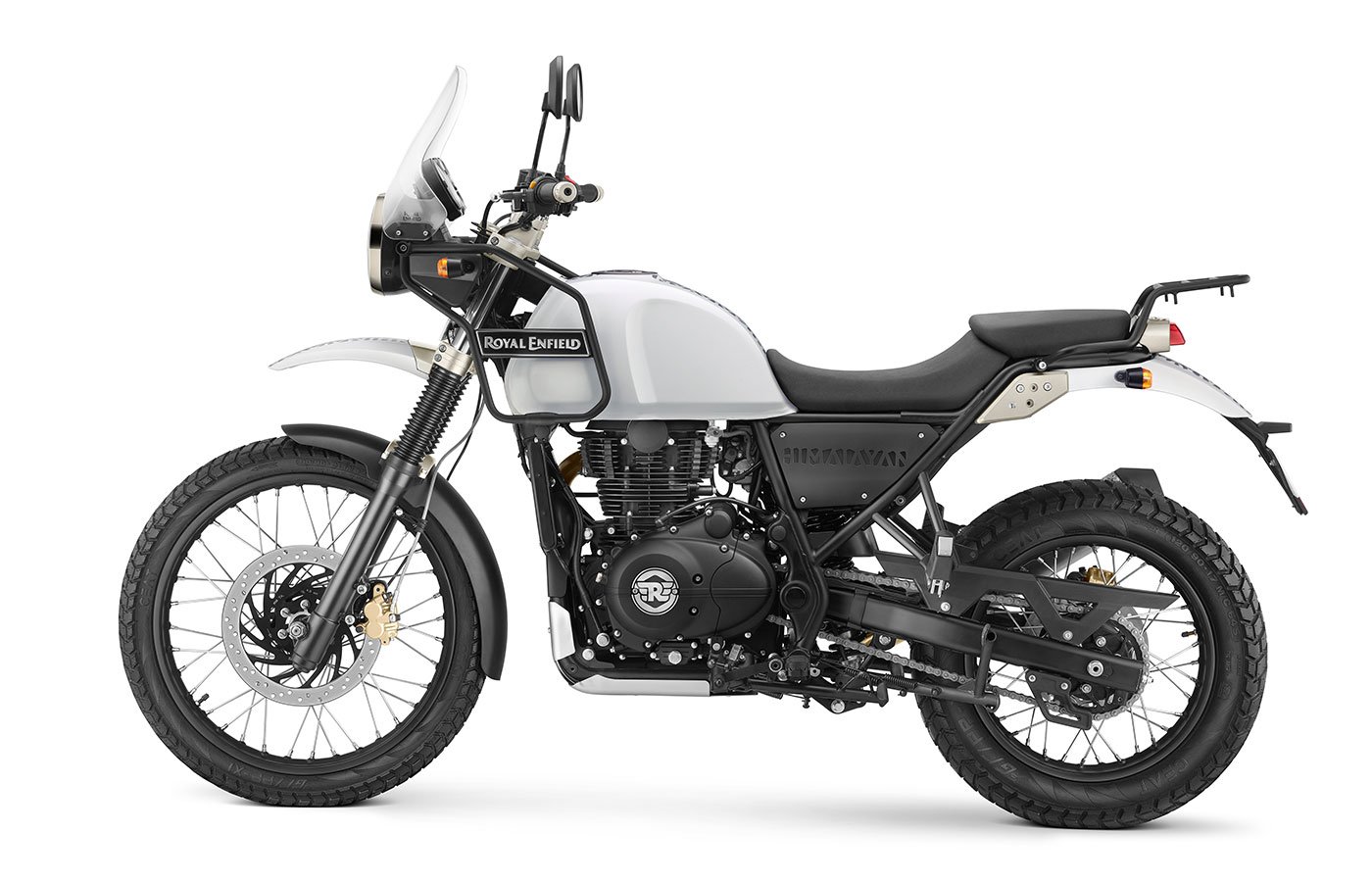

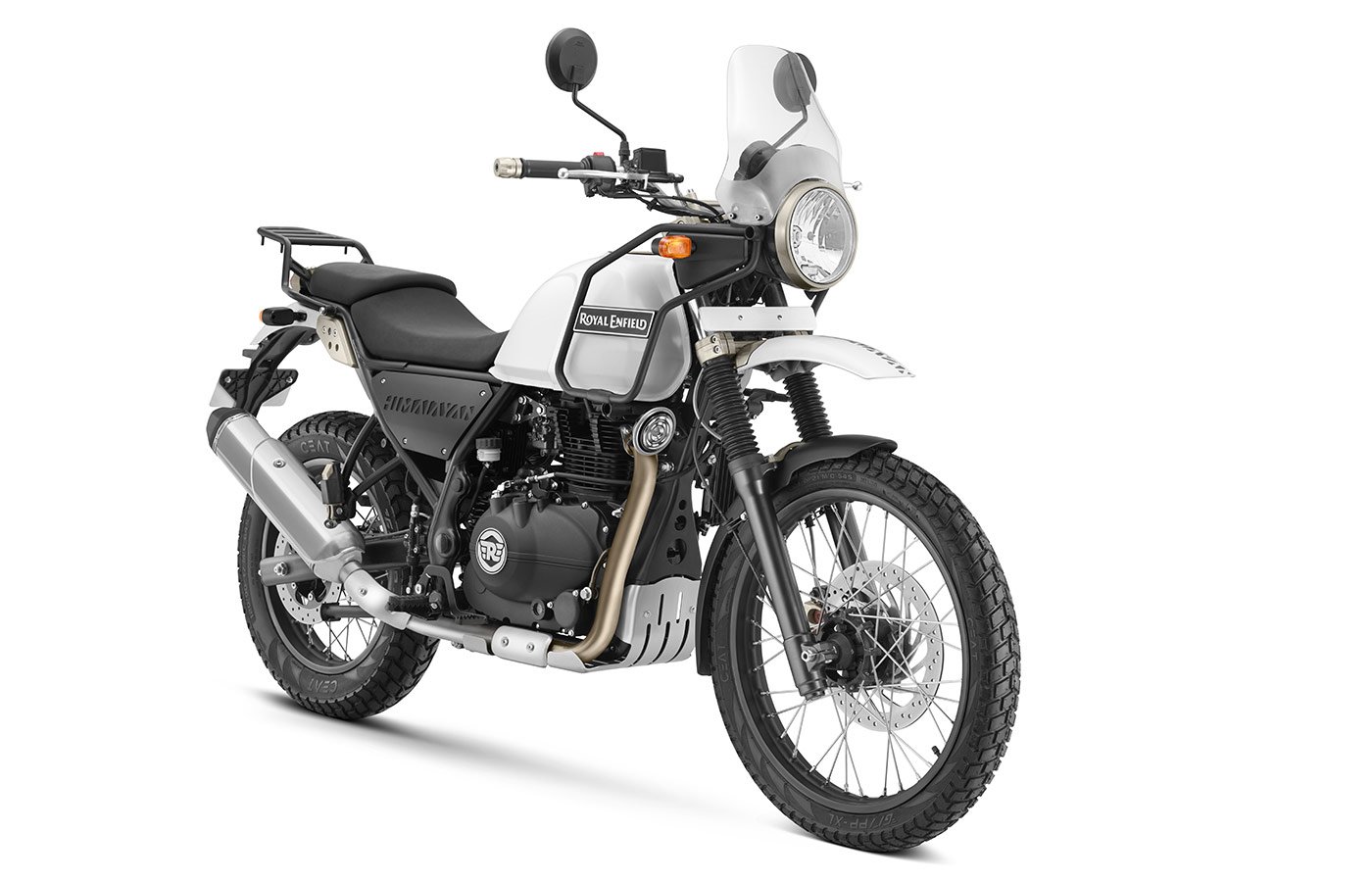

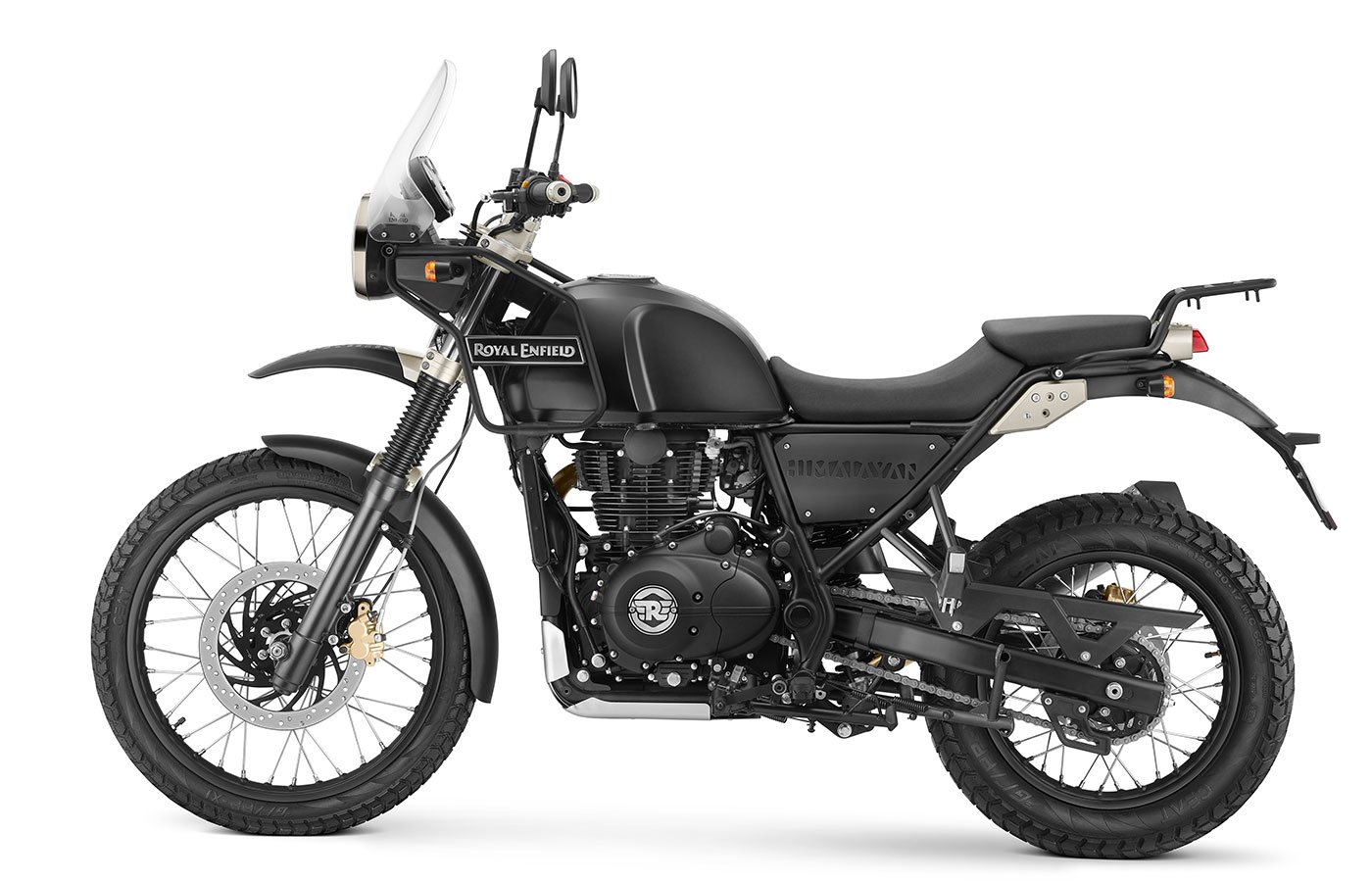

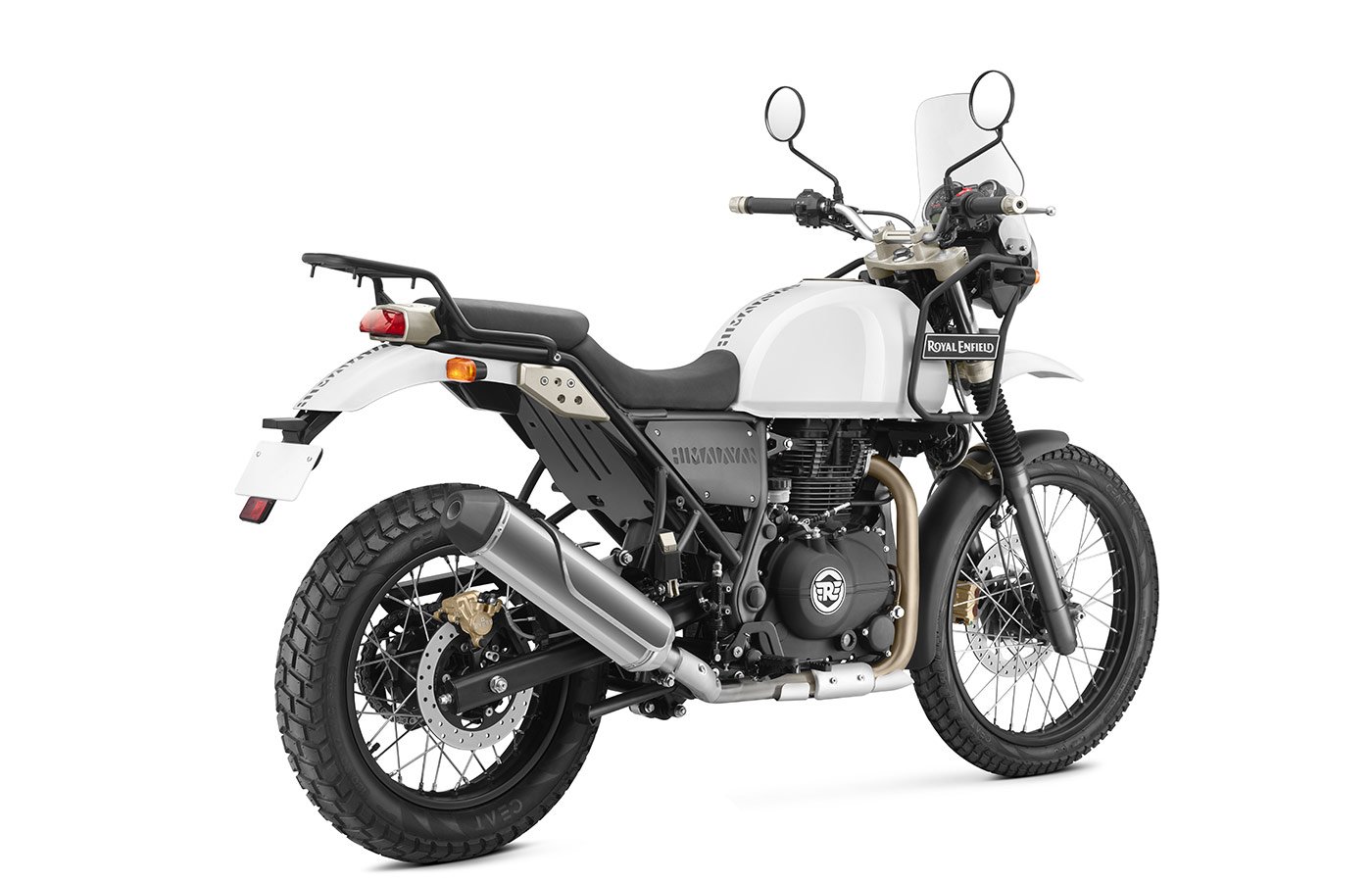

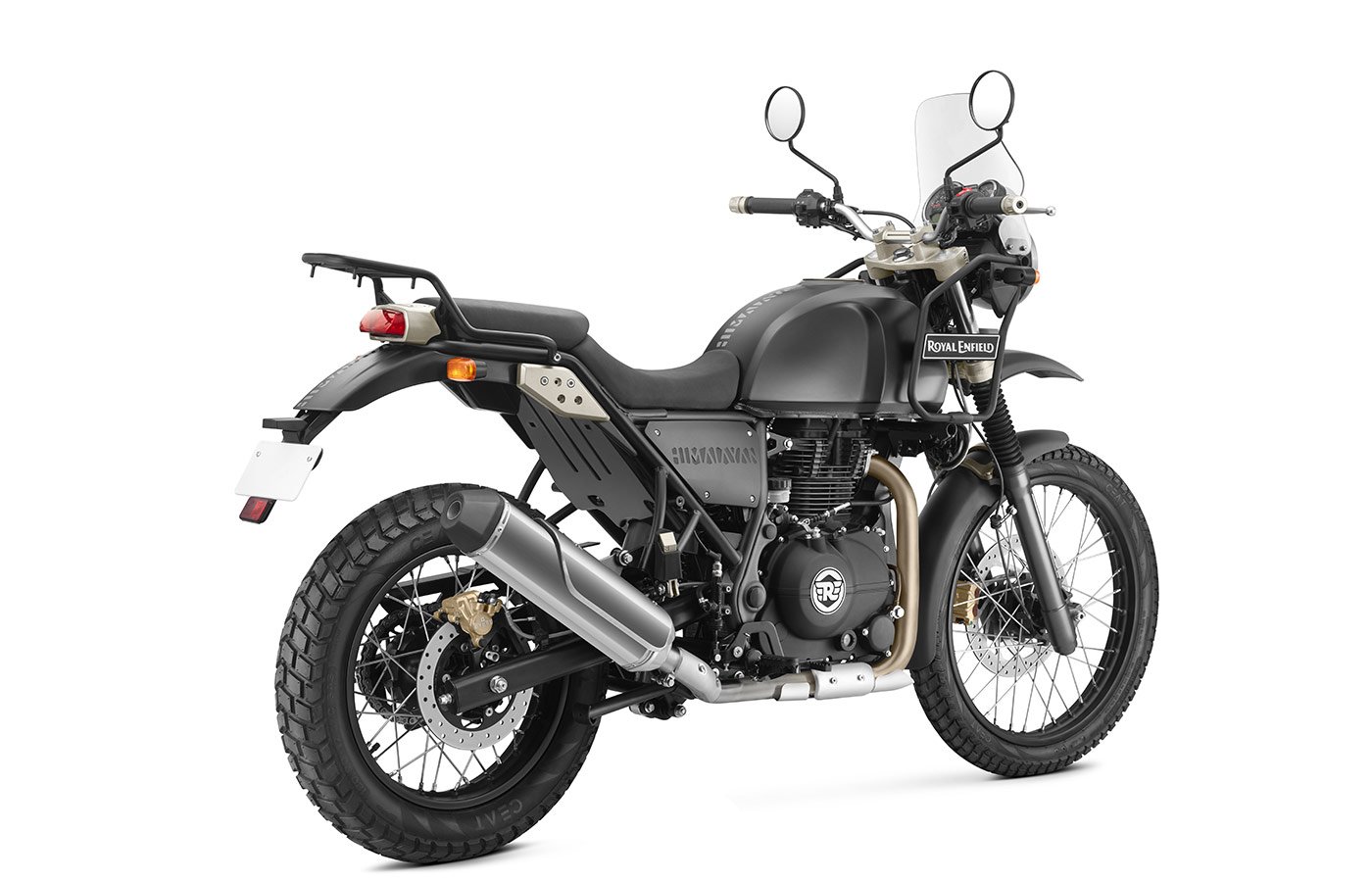

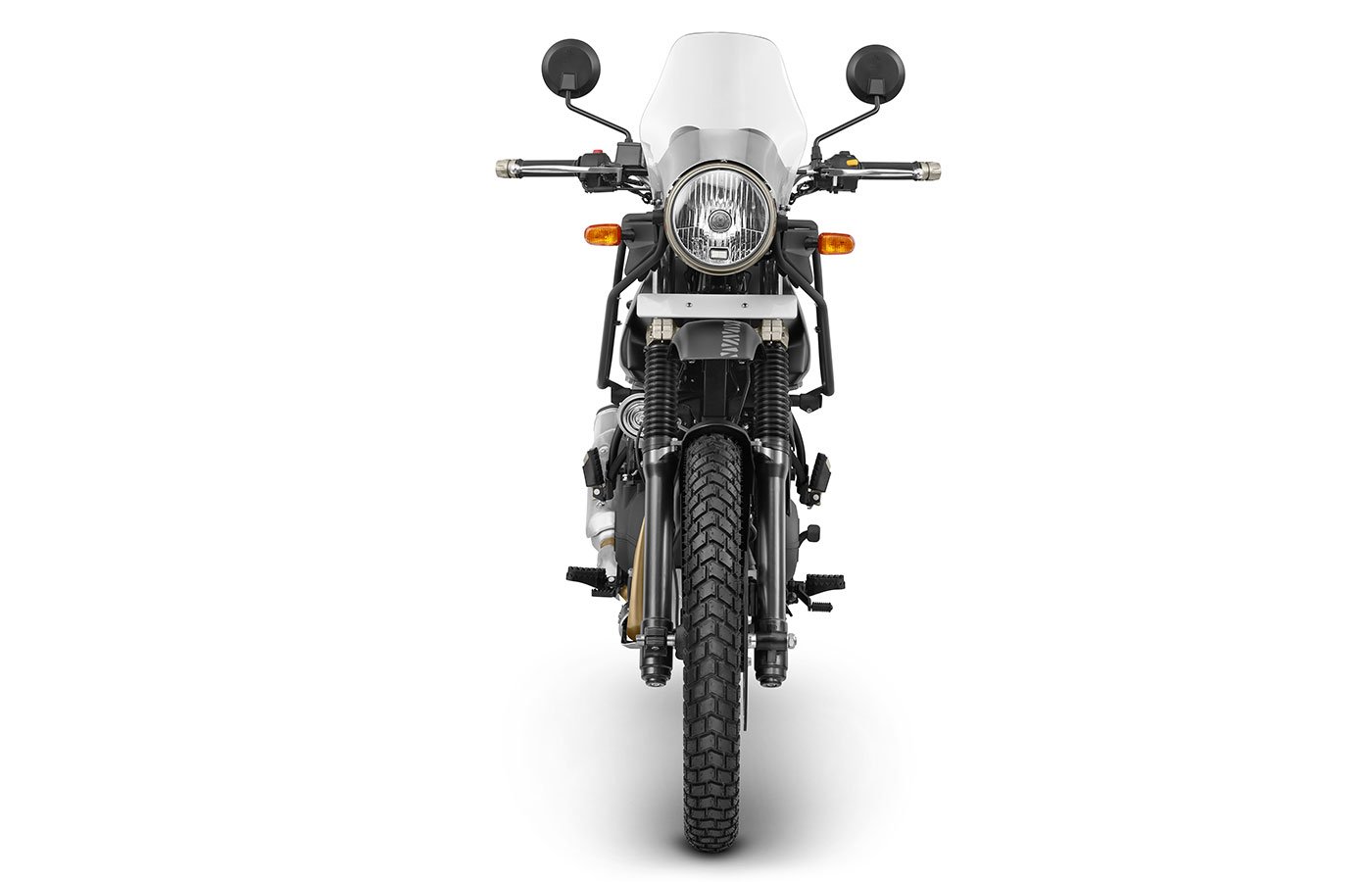

HIMALAYAN
- Over View
THE HIMALAYAN COMBINES OUTSTANDING VERSATILITY AND ALL-DAY COMFORT FOR ALL RIDES. LONG-TRAVEL SUSPENSION, NATURAL UPRIGHT RIDING POSITION, A DURABLE AND TORQUEY ENGINE ALL ADD UP TO A COMFORTABLE RIDE FOR YOU, WHETHER IT’S ON THE HIGHWAY, CITY STREETS, OR REMOTE MOUNTAIN ROADS. THE HIMALAYAN IS FIT TO BE YOUR ONLY MOTORCYCLE.
- Displacement
411 CC
- Gearbox
5 Speed
- Fuel Capacity
15+/- 0.5 lts
- TECHNICAL SPECIFICATIONS
| ENGINE | |
|---|---|
| Type: | Single cylinder, air-cooled, 4 stroke, SOHC |
| Displacement: | 411cc |
| Bore x stroke : | 78 mm x 86 mm |
| Compression Ratio: | 9.5:1 |
| Maximum Power: | 24.5 BHP (18.02 KW) @ 6500 RPM |
| Maximum Torque: | 32 NM @ 4000 - 4500 RPM |
| Ignition System: | TCI, multi-curve |
| Clutch: | Wet, multi-plate |
| Gearbox: | 5 Speed Constant Mesh |
| Lubrication: | Wet sump |
| Engine Oil: | 15 W 50 API, SL Grade JASO MA |
| Fuel Supply: | Carburettor with throttle position sensor |
| Air Cleaner: | Paper Element |
| Engine Start: | Electric |
| CHASSIS & SUSPENSION: | |
| Type: | Half-duplex split cradle frame |
| Front suspension: | Telescopic, 41 mm forks, 200 mm travel |
| Rear suspension: | Monoshock with linkage, 180 mm wheel travel |
| DIMENSIONS: | |
| Wheelbase: | 1465 mm |
| Ground Clearance: | 220 mm |
| Length: | 2190 mm |
| Width: | 840 mm |
| Height: | 1360 mm (flyscreen top) |
| Kerb Weight: | 182 Kg |
| Fuel Capacity: | 15+/- 0.5 lts |
| BRAKES & TYRES: | |
| Tyres Fr.: | 90/90 - 21" |
| Tyres Rr.: | 120/90 - 17" |
| Brakes Front : | 300 mm disc, 2-piston floating caliper |
| Brakes Rear: | 240 mm disc, single piston floating caliper |
| ELECTRICALS: | |
| Electrical System: | 12 volt - DC |
| Battery : | 12 volt, 14 Ah |
| Head Lamp: | 12V H4 60 / 55 W |
| Tail Lamp: | LED |
| Turn Signal Lamp: | - |
