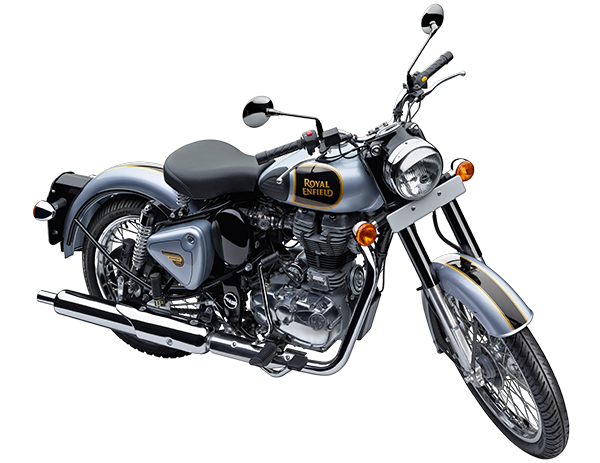

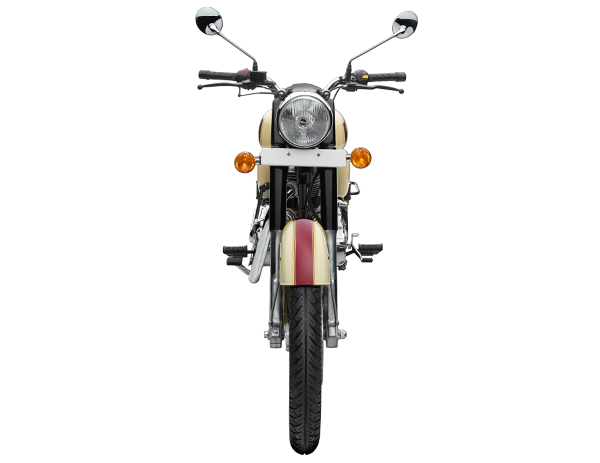

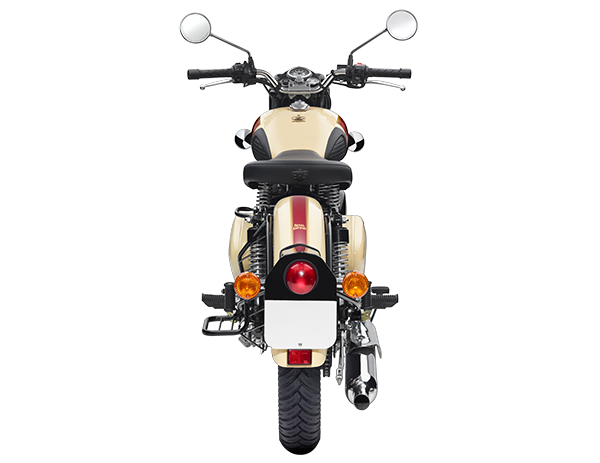

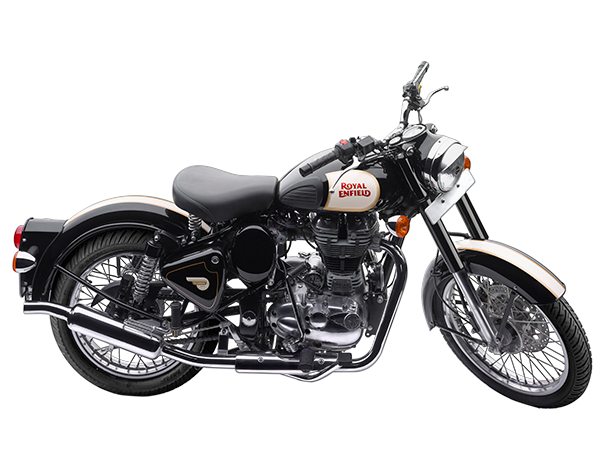

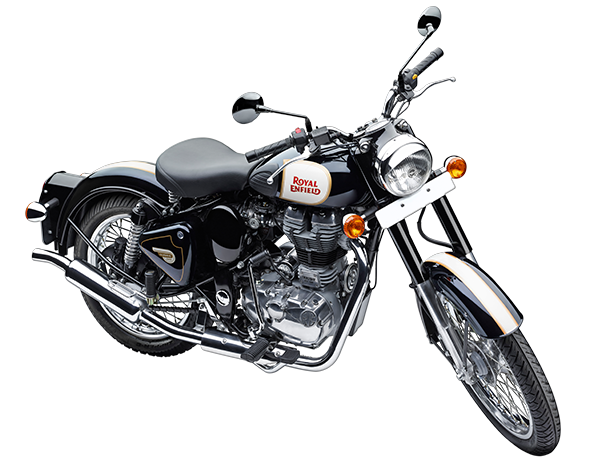

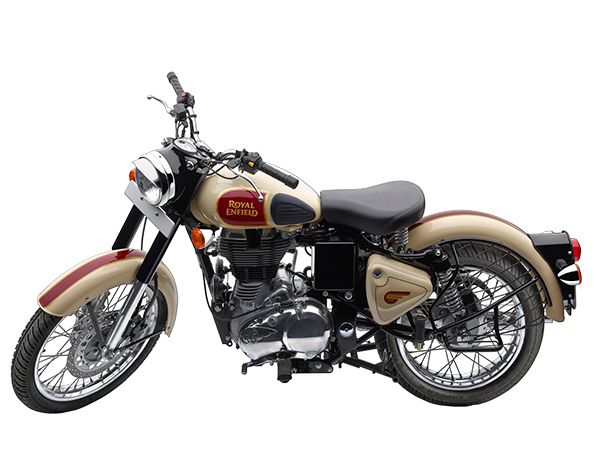

CLASSIC 500
- Over View
Armed with a potent fuel injected 500cc engine and clothed in a disarmingly appealing post war styling, this promises to be the most coveted Royal Enfield in history.
For those who want it all. The power, the fuel efficiency, the reliability and simple, yet drop dead gorgeous classic styling. The classic turns heads not because it wants to but because it can’t help it. You will appreciate the beat not just for the music it creates but also for the muted feeling of strength and power that it signifies.
The view is simply better when you are astride a Royal Enfield Classic 500 – whether moving or still. Nothing more to be said.
- Displacement
499 CC
- Gearbox
5 Speed
- Fuel Capacity
13.5 Ltr
- TECHNICAL SPECIFICATIONS
| ENGINE | |
|---|---|
| Type: | Single Cylinder, 4 stroke,Twinspark |
| Displacement: | 499cc |
| Bore x stroke : | 84mm x 90mm |
| Compression Ratio: | 8.5:1 |
| Maximum Power: | 27.2 bhp @ 5250 rpm |
| Maximum Torque: | 41.3 Nm @ 4000 rpm |
| Ignition System: | Digital Electronic Ignition |
| Clutch: | Wet, multi-plate |
| Gearbox: | 5 Speed Constant Mesh |
| Lubrication: | Wet sump |
| Engine Oil: | 15 W 50 API, SL Grade JASO MA |
| Fuel Supply: | Keihin Electronic Fuel Injection |
| Air Cleaner: | Paper Element |
| Engine Start: | Electric & Kick |
| CHASSIS & SUSPENSION: | |
| Type: | Single downtube, using engine as stressed member |
| Front suspension: | Telescopic, 35mm forks, 130mm travel |
| Rear suspension: | Twin gas charged shock absorbers with 5-step adjustable preload, 80mm travel |
| DIMENSIONS: | |
| Wheelbase: | 1360mm |
| Ground Clearance: | 135mm |
| Length: | 2140mm |
| Width: | 790 mm |
| Height: | 1090 mm |
| Kerb Weight: | 190 Kg (with 90% Fuel & Oil) |
| Fuel Capacity: | 13.5 Ltr (3.2Gallon) |
| BRAKES & TYRES: | |
| Tyres Fr.: | 90/90 - 19(Domestic), 90/90 - 18(Export) |
| Tyres Rr.: | 120/80 - 18(Domestic), 110/80 - 18(Export) |
| Brakes Front : | 280mm Disc, 2-Piston caliper |
| Brakes Rear: | 153mm Drum, Single Lead Internal Expanding |
| ELECTRICALS: | |
| Electrical System: | 12 volt - DC |
| Battery : | 12 volt, 14 Ah |
| Head Lamp: | 60 W / 55 W, HALOGEN |
| Tail Lamp: | 21 W / 5 W |
| Turn Signal Lamp: | - |
